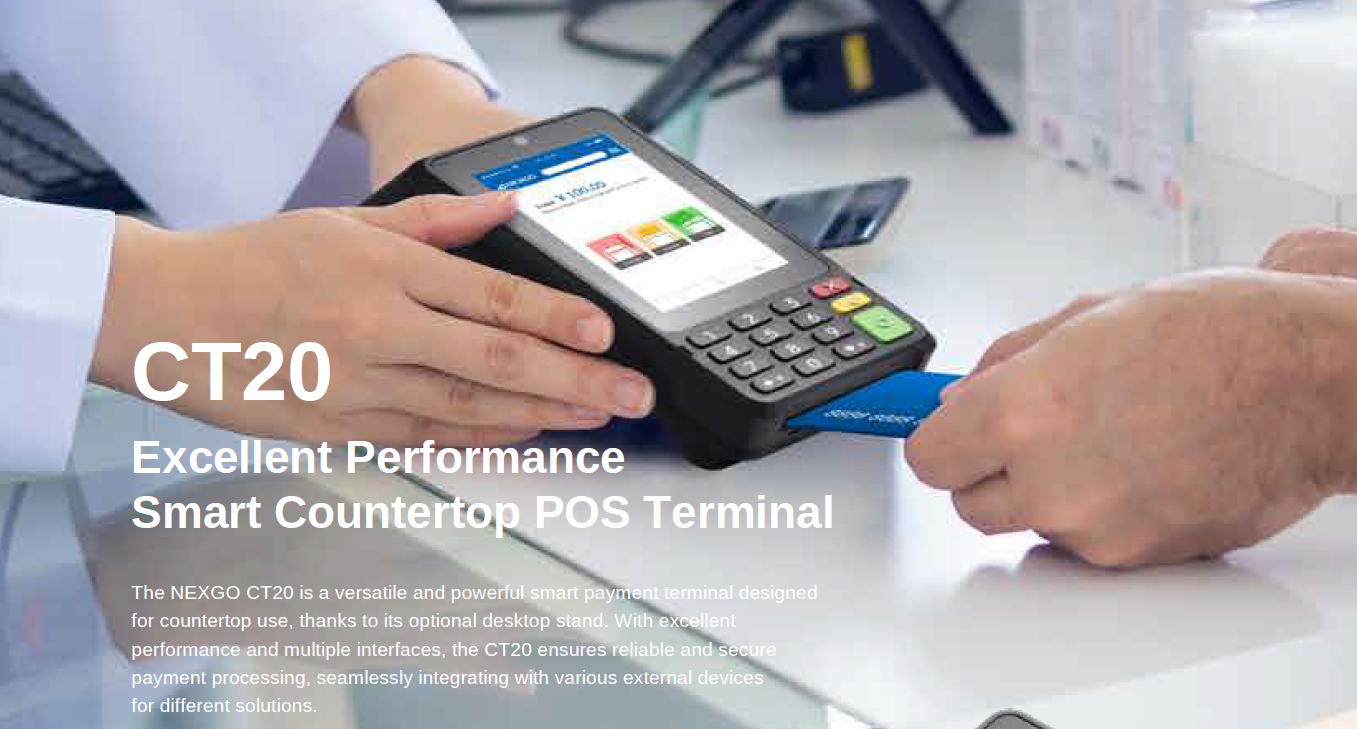

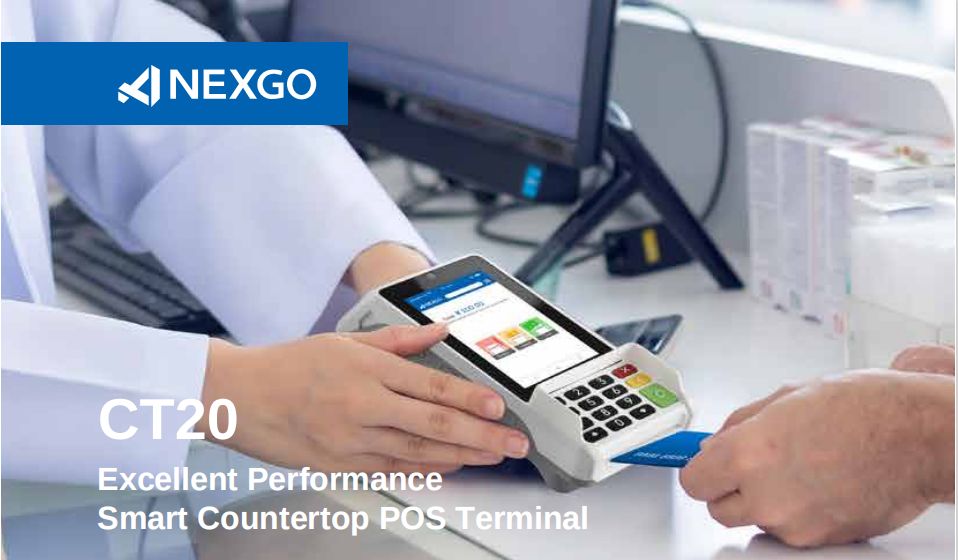

CT20
Specification & Download Purchase
Specification
  • OS

    Based on Android 11

  • Processor

    Quad-Core Processor

    Cortex A53, 2.0GHz

  • Memory

    2GB RAM + 8GB ROM

  • Display

    4.0″, 480 * 800 IPS LCD Capacitive Touchscreen

  • Card Readers

    Magnetic stripe cards

    Chip Cards

    Contactless Cards

  • Communication

    LAN

    Wi-Fi, 802.11a/b/g/n/ac, 2.4GHz&5GHz

    BT5.X

    4G/3G/2G（Optional）

  • Camera

    Front: 2MP

  • Keypad

    15 physical keys(Numeric/ Function)

    Removable privacy shield(Optional)

  • Card Slots

    1 x SD

    2 x SAM

    1 x SIM (optional）

  • Printer

    High Speed Thermal Printer,

    Paper Roll Width : 58mm,

    Diameter: 40mm

  • Ports

    1 x USB Type-A,

    1 x USB Type-C

    1 x LAN,

    2 x RS232

  • Environmental

    Operating Temperature : -10°C to 45°C

    Storage Temperature : -20°C to 70°C

    Relative Humidity : 10% to 95%(Non-Condensing)

  • Physical

    186 x 82 x 72 mm

  • Audio

    1 x Speaker

    1 x Audio jack

  • Adaptor

    DC：9V-2A

  • Certifications

    PCI 6.x, EMV L1, EMV CL1, Quickpass, Paypass, Paywave, TQM, JCB, Discover, Amex, FCC, CE, RoHS
