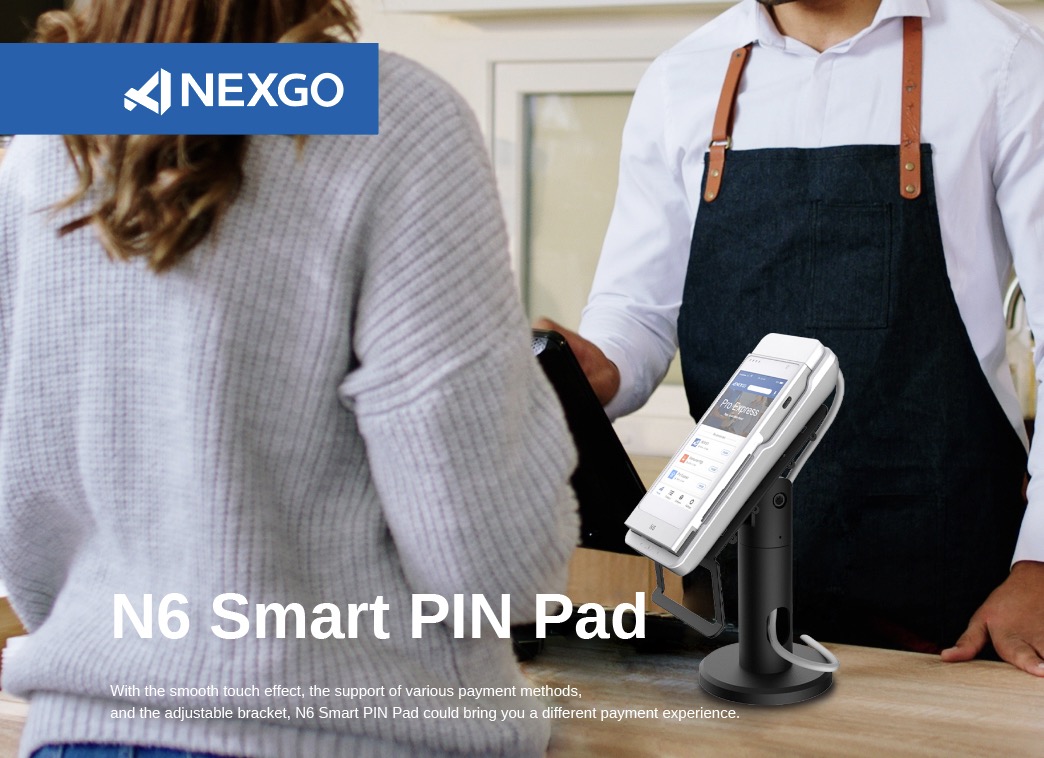

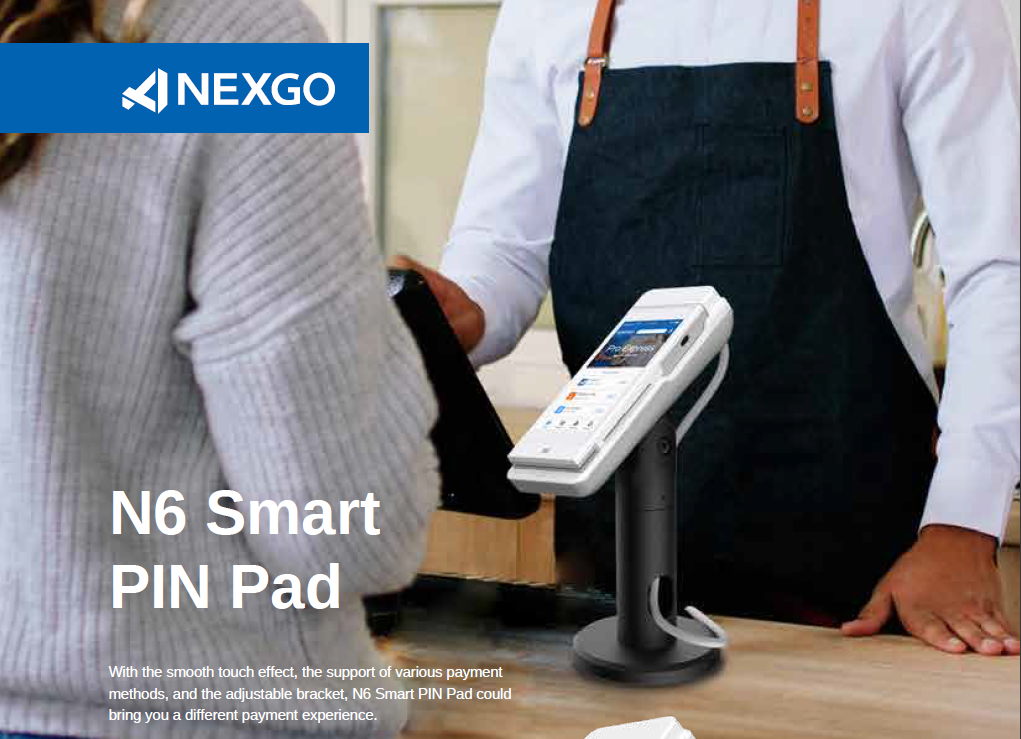

N6 Smart PIN Pad
Specification & Download Purchase
Specification
  • OS

    Android 10

  • Processor

    Quad-core

    Cortex-A53, 1.5GHz

  • Memory

    1GB RAM + 8GB ROM2GB RAM + 16GB ROM （Optional）

  • Display

    5.0" HD (1280 x 720) Color ScreenCapacitive TouchscreenSupports E-Signature


  • Printer

    High Speed Thermal

    Printer Paper Roll Width: 58mm

    Diameter: 40mm

  • Keys

    1 Power Key

    2 Custom Keys


  • Card Slots

    1 x Micro SD

    2 x SIM + 1 x SAM

    Or 1 x SIM+2 x SAM (Optional)

    Or 1 x ESIM+1x SIM+1x SAM (Optional)


  • Cameras

    Front: 2 MP, FF

  • Positioning

    GPS, GLONASS, BEIDOU


  • Battery

    3.8V/3000mAh

    Rechargeable Li-ion Battery


  • Communication

    4G/3G/2G

    2.4&5GHz Wi-Fi（802.11 a/b/g/n）

    BT4.0

    Ethernet, RS232

  • Physical

    185.3mm L x 81.3mm W x 34.5mm H

  • Accessories

    Stand Base

  • Audio

    1 x Speaker

  • Ports

    1 x Type-C USB, 1 x Micro SD,

    1 x LAN, 1 x RS232,

    1 x USB Host

  • Card Readers

    Magnetic stripe cards

    Chip Cards

    Contactless Cards

  • Environmental

    Operating Temperature: 0°C to 50°C

    Storage Temperature: -20°C to 70°C Relative

    Humidity:5% to 95% (Non-Condensing)

  • Certifications
    PCI6.X, CE, FCC, EMV L1/L2, EMV CL1Quickpass, Paypass, PayWave, JCB, AMEX, Discover, TQM
  • Adaptor

    DC 5.0V/2.0A
