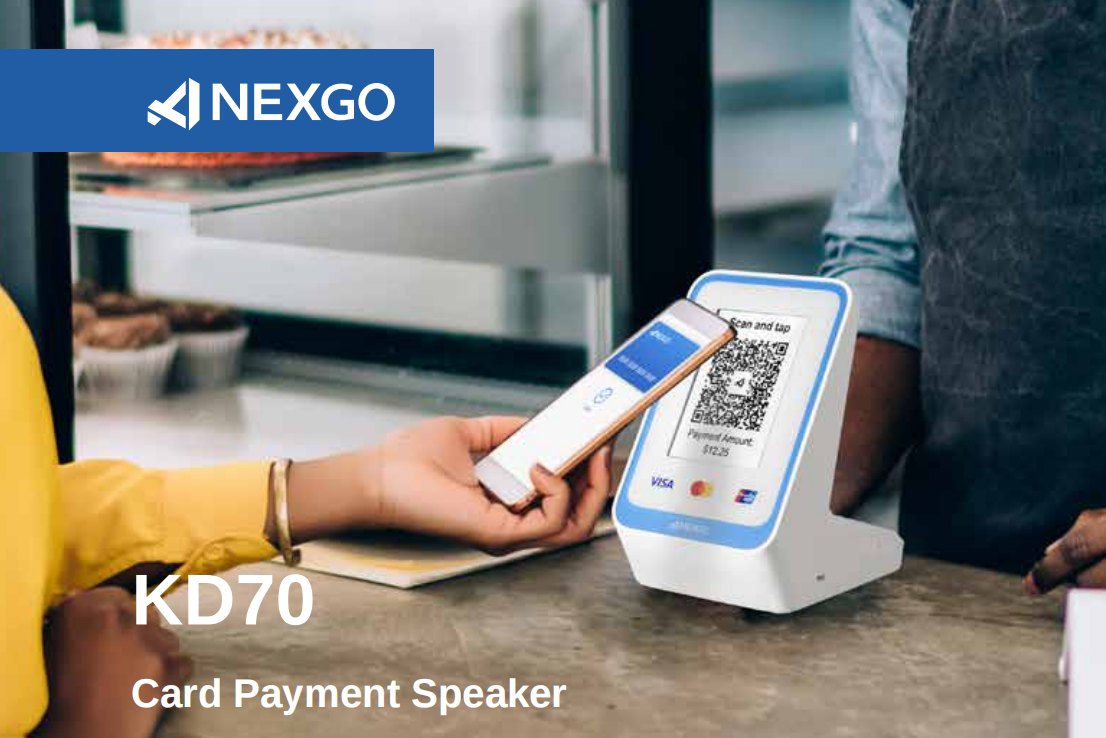

KD70
Specification & Download Purchase
Specification
  • OS

    RTOS

  • Processor

    ARM Cortex-A5

    Secure Process: ARM Cortex-M4

  • Card Slots

    1 x Micro SIM

  • Memory

    RAM 8MB+Flash 12MB

    Support flash extend up to 64MB



  • LED Indicator

    1*RGB LED,

    Power and Status indicator

  • Communication

    4G Cat1

    Wi-Fi(Optional)

  • Battery

    3.7V/2600mAh

  • Card Readers

    Chip Cards

    Contactless Cards

  • Display

    Rear: 2.3" , Color Screen, 284*76

    Front: 3.5" , Color Screen, 320*480

    Front: 2.8" , Color Screen, 320*240(Optional)

    Front: 2.3" , Color Screen, 284*76(Optional)

  • Ports

    Type C

  • Keys

    5*Keys(PWK，Vol±，FN，Reset)，

    Physical keypad(0~9 +5*FNs)

  • Audio

    Speaker 4Ω&3W

  • Physical

    124.4mm L×88mm W×142mm H

    316g( Battery Included)

  • Adaptor

    DC5.0V/1.0A

  • Environmental

    Operating Temperature: -10°C to 50°C

    Storage Temperature: -20°C to 60°C

    Relative Humidity : 5% to 95%(Non-Condensing)

  • Certifications

    PCI PTS 7.0, EMV L1&L2, EMV CL L1, Mastercard Paypass,

    Visa Paywave, JCB J/Speedy, Amex Expresspay, Discover D-PAS,

    UnionPay QuickPass, RuPay, MCCS, Mastercard TQM,

    FCC, CE, BIS, WPC, RoHS
