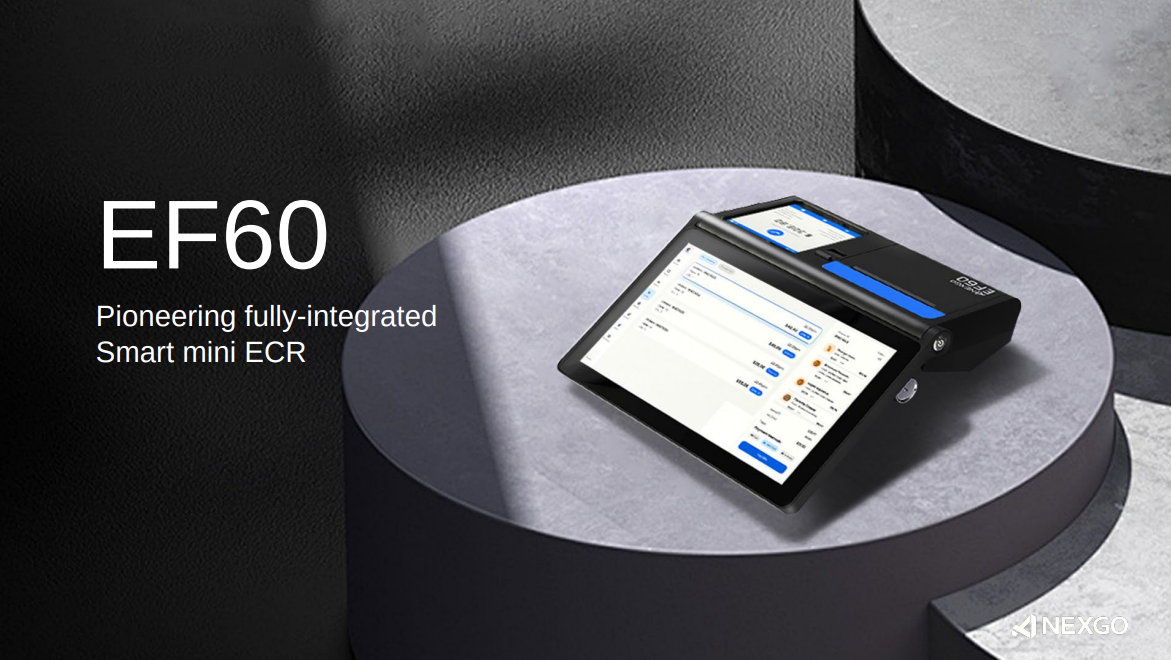

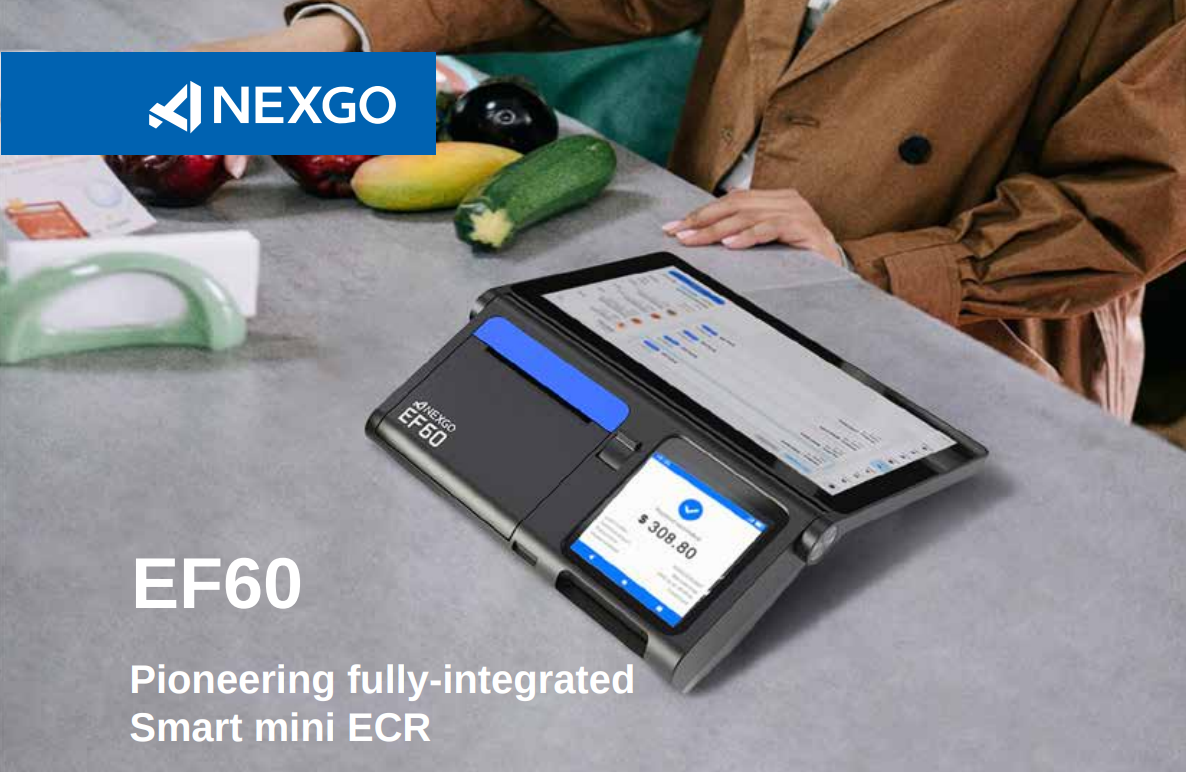

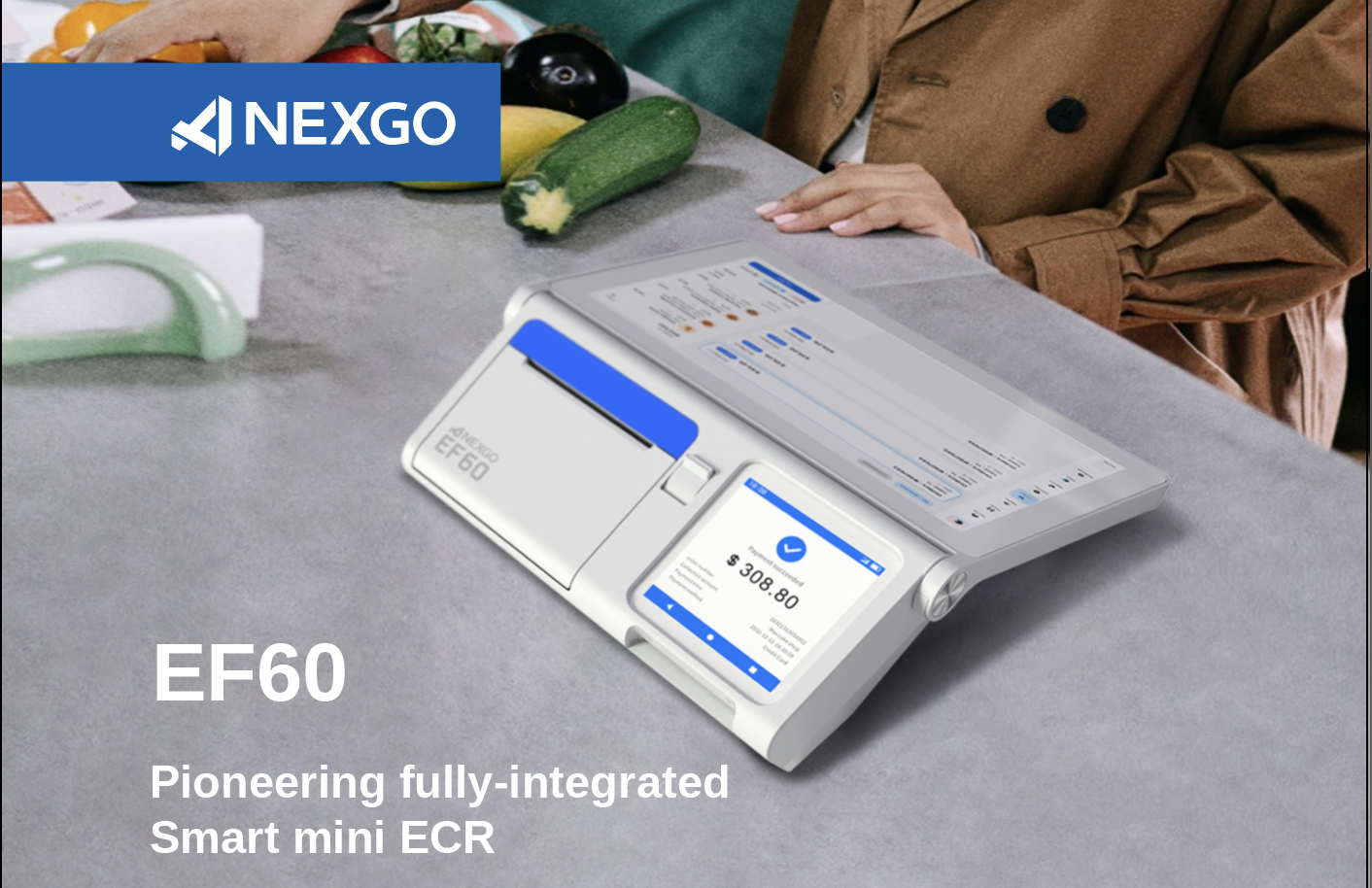

EF60
Specification & Download Purchase
Specification
  • OS

    Android 11



  • Printer

    HighSpeed Thermal Printer,

    PaperRoll Width : 80/58mm,

    Diameter:50mm

    SupportAutomatic Cutter

  • Audio

    1x Speaker

    1x Microphone

  • Adaptor

    DC 12V/7A

  • Processor

    Quad-core

    A55, 2.0GHz

  • Card Readers

    Chip Cards

    Contactless Cards

  • Keys

    1 Power Key

  • Physical

    277mm (L) x 252mm(W) x 86mm(H)


  • Memory

    4GB RAM + 64GB ROM

    (Micro SD Card Supported,

    up to 128GB)

  • Communication

    4G/3G/2G

    Wi-Fi,802.11a/b/g/n/ac, 2.4GHz&5GHz

    BT5.0


  • Environmental

    Operating Temperature :

    0°C to 50°C

    Storage Temperature :

    -20°C to 70°C

  • Display

    Main: 10.1" (800 x 1280) Color Screen,

    Capacitive Touchscreen

    Customer Facing Display:4.0"

    (480*480)Color Screen Capacitive

    Touchscreen


  • Battery

    External Rechargeable UPS

    11.1V/4500mAh (Optional)

  • Ports

    4 xType-A USB

    1 xType-C USB OTG

    1 xRJ45, LAN

    1 xRJ12, Cash Drawer

    1 xDC, 1 x Audio Jack 3.5mm

    2 xUART


  • Accessories

    ScanningModule(Built-in)

    NFCReader

    DallasKey

    Custom-madeFiscal Unit Extension


  • Camera

    FrontCamera: 2 MP


  • Card Slots

    2 x SIM

    1 x SD

  • PIN Pad

    Software PIN Pad

    Blind PIN Supported

  • Certifications

    CE,FCC

    EMV3.0,L1&L2,Quickpass, Paypass,PayWave,JCB,AMEX,Discover,TQM;

    PCI6.X
