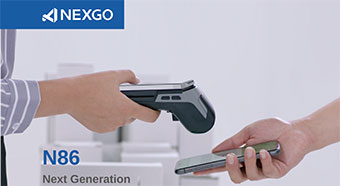

N86
Specification & Download Purchase
Specification
  • OS

    Android 9

  • Printer

    High Speed Thermal Printer

    Paper Roll Width : 58mm, Diameter: 40mm

  • Audio

    1 x Speaker

    Optional:1 x Microphone

  • Adaptor

    DC 5V/2A

  • Processor

    Quad-Core

    Cortex-A53, 1.4GHz

  • Card Readers

    Magnetic stripe cards

    Chip Cards

    Contactless Cards

  • Keys

    1 Power Key, 2 Volume Keys

  • Physical

    194mm(L)x80mm(W)x68.8mm(H)

    420g( Battery Included)

  • Memory

    1GB RAM + 8GB ROM

    2GB RAM + 16GB ROM

    (Micro SD Card Supported, up to 128GB)

  • Communication

    4G/3G/2G

    Wi-Fi, 802.11b/g/n, 2.4GHz

    BT4.2

  • Positioning

    GPS, GLONASS or BeiDou

  • Environmental

    Operating Temperature :

    0°C to 50°C

    Storage Temperature :

    -20°C to 60°C

    Shockproof:1.5m

  • Display

    5.0" HD (1280 x 720) Color Screen,

    Capacitive Touchscreen, Multi-Touch

    Secondary Display (192 x 32) Pixel

    LCD(Optional)

  • Battery

    7.4V/2600mAh Equals to 3.7V/5200mAh

    Optional:7.2V/3300mAh Equals to 3.6V/6600mAh

  • Peripheral Ports

    1 x Type C USB OTG

    6 PIN POGO PIN

  • Accessories

    Charging Base

    Multi-function Base

    Scanning Module(Built-in)

    Wristband

    Fingerprint Module(Built-in)

  • Cameras

    Rear : 2 MP, FF

    Optional:5 MP, AF with Flashlight

    Optional: Front : 2 MP, FF

  • Card Slots

    1 x SIM + 2 x SAM

    Optional: 2 x SIM+1 x SAM

    Optional: eSIM

    1 x SD

  • PIN Pad

    Software PIN Pad

    Blind PIN Supported

  • Certifications

    CE, ATEX, IP54;

    EMV3.0, L1&L2, PBOC/QPBOC,

    Paypass, PayWave, JCB, AMEX,

    Discover, TQM;

    PCI6.X, UPTS 3.0, Common Criteria
